Pilatus PC-6 B2H2 parts for sale
Suite à la conversion de notre Pilatus en version B2H4 et à l'installation d'un MVP-50-T en remplacement des instruments classiques, nous proposons les pièces suivantes à la vente. Possibilité de vente en lot ou au détail. Les pièces sont en bon état et fonctionnelles.
Following the conversion of our Pilatus to the B2H4 version and the installation of an MVP-50-T to replace the traditional instruments, we are offering the following parts for sale. Available for purchase as a lot or individually. The parts are in good condition and fully functional.
| ATA | Désignation | p/n PILATUS | s/n | Référence Constructeur | Quantité | Note |
|---|---|---|---|---|---|---|

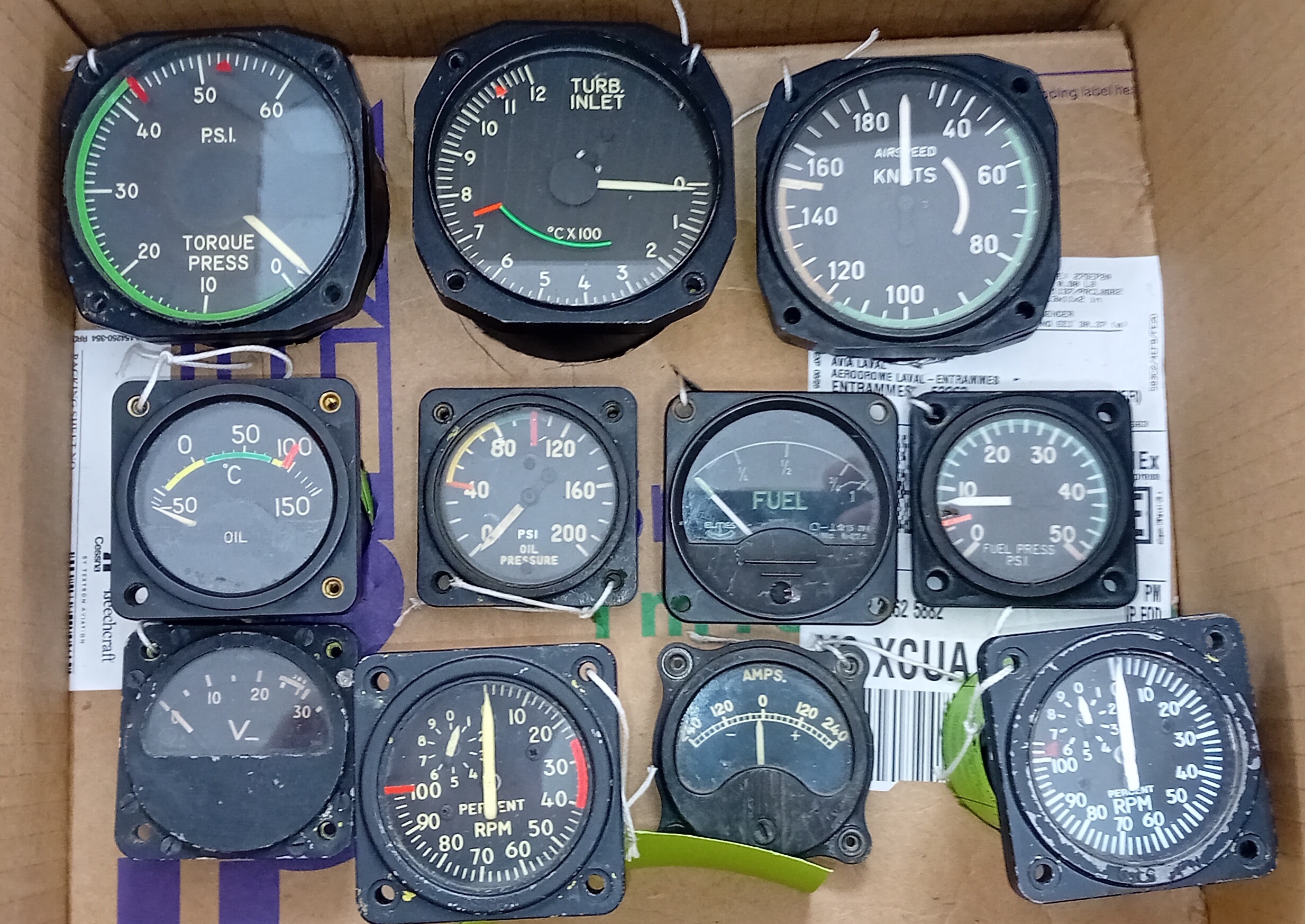

| INSTRUMENTS | ||||||
| 28 | Fuel Pressure | 6227.0161.01 | DO131 | 22-869-080-1 | 1 | En l'état / as is |
| 28 | Fuel Gage | 119.32.06.321 | UNK | N/A | 1 | En l'état / as is |
| 79 | Temp Oil | 6227.0254.01 | AF-43-1468 | 10738-A | 1 | En l'état / as is |
| 77 | Torque Pressure | 119.32.06.238 | 6-67-288 | 382-60A | 1 | En l'état / as is |
| 34 | Air Speed | 6227.0196.01 | 75009 | FM-445-2-F | 1 | En l'état / as is |
| 79 | Oil Pressure | 6227.0253.01 | 90752 | D-103 | 1 | En l'état / as is |
| 77 | Percent RPM indicator | 6227.0190.00 | F4645 | 8DJ81CAA | 1 | En l'état / as is |
| 77 | Percent RPM indicator | 6227.0190.00 | Y191 | 8DJ81CAA | 1 | En l'état / as is |
| 24 | Ampermeter | 975.50.84.103 | UNK | N/A | 1 | En l'état / as is |
| 24 | V Voltmeter | 975.6081.101 | ------.01 | 571-2 | 1 | En l'état / as is |
| 77 | Thermocouple (ITT Indicator) | 119.32.06.217 | 688 | 172B3 | 1 | En l'état / as is |
| 28 | Fuel Pressure Gage | 6227.0161.01 | 5156 | 662TG | 1 | En l'état / as is |
| 28 | Fuel Flow Amplifier | 987.91.12.102 | 3862 | AT1 256BG | 1 | En l'état / as is |
| 77 | Sensor Torque | 975.21.17.101 | A.F. 4-71-12 | 318-00020 | 1 | En l'état / as is |
| 77 | Hose Flexible Assembly (Torque) | 6501.0131.00 | UNK | N/A | 1 | En l'état / as is |
| 28 | Flowmeter Sensor | 975.35.15.103 | 1845 | T1024G | 1 | En l'état / as is |
| WING TIP LEFT | ||||||
| 57 | wing tip edge nose | 6103.0010.51 | UNK | N/A | 1 | En l'état / as is |
| 57 | wing tip edge center | 6103.0010.07 | UNK | N/A | 1 | En l'état / as is |
| 57 | wing tip center rear | 6103.0010.09 | UNK | N/A | 1 | En l'état / as is |
| WING TIP RIGHT | ||||||
| 57 | wing tip edge nose | 6103.0010.52 | UNK | N/A | 1 | En l'état / as is |
| 57 | wing tip edge center | 6103.0010.06 | UNK | N/A | 1 | En l'état / as is |
| 57 | wing tip center rear | 6103.0010.08 | UNK | N/A | 1 | En l'état / as is |
| WING STRUTS | ||||||
| 51 | strut assy wing issue F | 6108.0011.00 | UNK | N/A | 2 | En l'état / as is |
| ACTUATOR TRIM PROFONDEUR | ||||||
| 27 | Actuator Assy Pitch TRIM | 6232.0198.53 | UNK | N/A | 1 | RG requise, en l'état - Overhaul required, as is |
| TAIL LANDING GEAR (Without Wheel) | ||||||
| 32 | Tail Gear Assy (B2/H2 Mechanical strut) | 6403.0067.53 | UNK | N/A | 1 | RG requise, en l'état - Overhaul required, as is |
| DORSAL ASSEMBLY | ||||||
| 53 | Dorsal Assembly | 6300.0018.00 | UNK | N/A | 1 | En l'état / as is |
